SKU:0000801

Regular price $199.99
Regular price Sale price $199.99
Sale Sold out

In stock

View full details

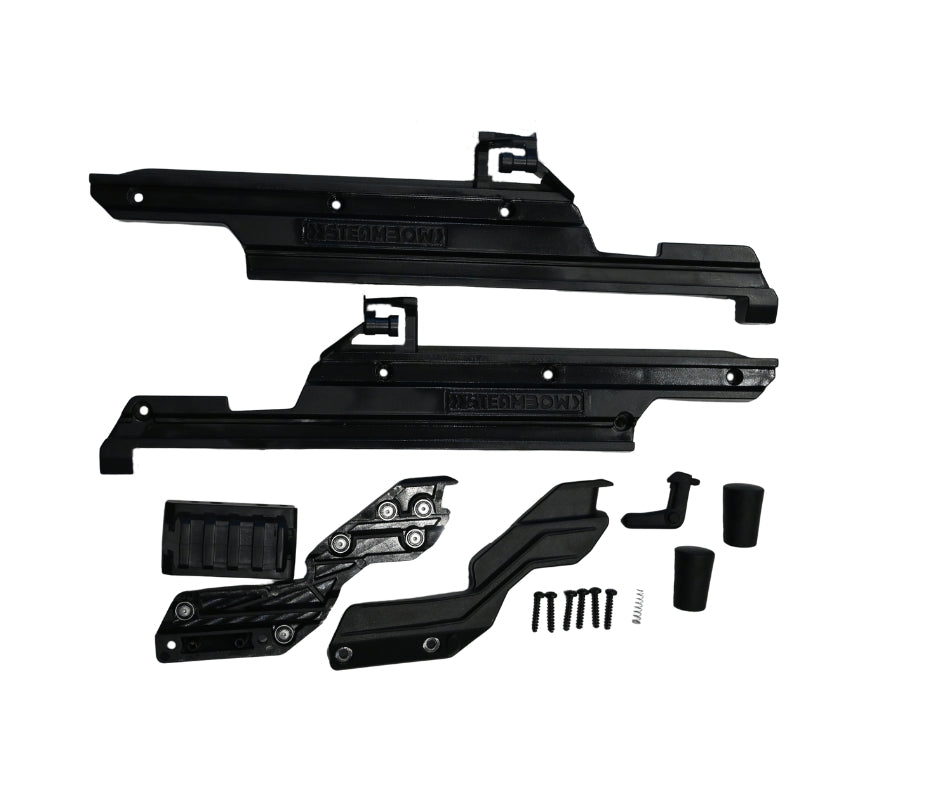

What's Included

  • 2 x side plates for AR-Series crossbows with slide rail and string damper
  • 2 x tension slide side parts, each with 6 ball bearings
  • 1 x tension slide lower part with Picatinny rail
  • 1 x locking hook with spring
  • 2 x rubber buffers for string dampers
  • All necessary screws and mounting hardware

Material

  • Impact-resistant polymer with glass fiber reinforcement
  • 12 ball bearings with closed design

Compatible With

  • All AR-Series Crossbow (except PD-5)
  • Limbs up to 75 lbs (CQ, Tactical, Advanced)

When it comes to lightning-fast shot sequences and a high rate of fire, pump-action rifles are unbeatable. This is also true for our crossbows. With the front grip, the string is pulled directly into the lock and as soon as you are back at the front, you can shoot. This allows for incredible firing speeds and the magazines are emptied amazingly quickly.
The disadvantage is that you no longer have a mechanical lever effect and have to pull the draw weight directly without assistance.
For inexperienced shooters and beginners, this is only possible with the 35 lbs bow. Stronger bows require regular training and appropriate muscle building. Then stronger bows can also be used well, although in our experience the 75 lbs bow is probably the upper limit. Only very few archers will be able to use stronger bows with the pump action kit.
The conversion takes just a few minutes. Simply unscrew the two existing side plates and you can start installing the pump action kit. First, mount the two new side plates with slide rails, then place the pump action system carriage on the rails and screw it to the center piece. Of course, we have also prepared an installation video for you.
The new side plates have built-in string dampers. The necessary rubber buffers are included in the scope of delivery.

  • Transforms any AR-Series crossbow into a lightning fast pump-action crossbow
  • Allows you to stay on target while recocking
  • equipped with built-in string-dampeners for improved string durability and less noise
  • 100% made in Germany

  • Compatible with all AR-Series crossbows (except PD-5)
  • Compatible with limbs up to 75 lbs
  • Easy to install with only a screwdriver
  • Made of glass-reinforced nylon and equipped with 12 ball bearings

Presentation

Comes With

  • 2 x side plates for AR-Series crossbows with slide rail and string damper
  • 2 x tension slide side parts, each with 6 ball bearings
  • 1 x tension slide lower part with Picatinny rail
  • 1 x locking hook with spring
  • 2 x rubber buffers for string dampers
  • All necessary screws and mounting hardware
