The Philosophy Behind Our Arrows

Every ranged weapon is only as good as the projectile – regardless of whether it fires a bullet (such as a rifle or pistol) or an arrow (such as a crossbow or vertical bow). If the arrow or ammunition is of poor quality, it is difficult to make good hits.

With the AR-6 Stinger II platform, the arrow determines the accuracy and penetration to a large degree. At the same time, proper arrows are also important for the reliability and functioning of the entire crossbow. One more reason to think carefully before making a choice.

There are different tip types for different applications. Broadheads with sharp blades for hunting, bodkin points based on historical designs and made of hardened tool steel, and CNC turned field points for target practice.
In addition, the arrow weight must be matched to the draw weight.

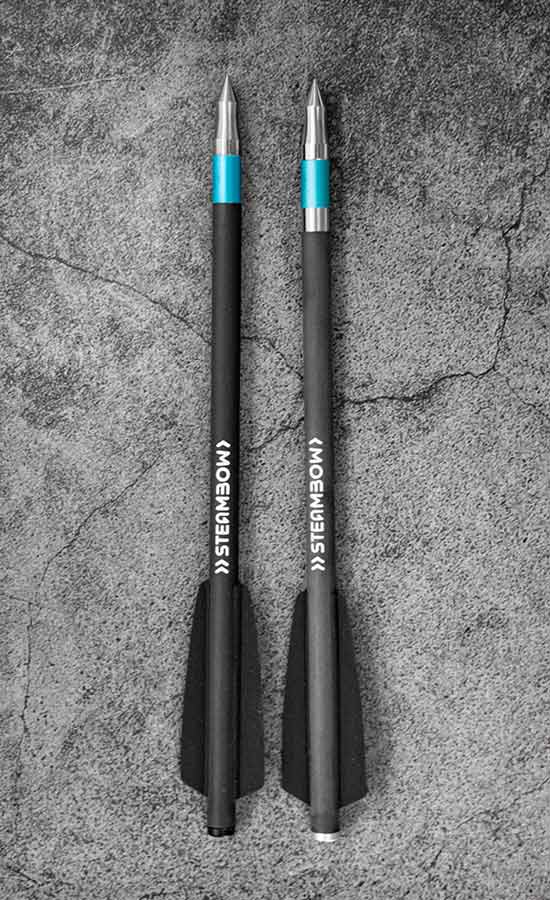

AR-Series - Carbon - Target Arrows

Ambitious target shooters demand repeatable results and as little wear on their materials as possible. The focus is on regular practice, and the goal is the greatest possible precision and accuracy in competitions.We have optimized our Target Arrows for these requirements. Highly precise flight characteristics, a weight matched to our limbs, a very robust design, and a point that does as little damage to the target as possible. Our arrows also feature a very appealing visual design – in the case of the Target Arrows a blue anodized aluminum ring, carbon shaft, and CNC turned stainless steel field point.Our Target Arrows are designed to be reused countless times, provided they are fired into a suitable target medium and provided the archer takes care to avoid striking an arrow in the target by firing another arrow into it.

AR-Series - Light Target Arrows

The light Target Arrows are optimized for draw weights from 35 to 75 lb and, thanks to their low weight, offer a flat trajectory and high velocity. They have a carbon shaft, a glued point, and a high-quality polymer nock.

Shop Now

Technical Data

Weight 9.4 Grams / 145 grains
Dimensions 6.2 x 162 mm
Material Carbon, color code “blue”

Suitable with these limbs

35 lbs
55 lbs
75 lbs

AR-Series - Heavy Target Arrows

The heavy Target Arrows (marked by an additional stainless-steel ring) are designed for our limbs with higher draw weights (90 to 120 lb). They have a high-quality aluminum nock and a hybrid carbon/aluminum shaft, meaning there is an aluminum core running inside the carbon shaft. This complex structure offers outstanding flight characteristics and makes the arrows extremely robust.

Shop Now

Technical Data

Weight 11.2 Grams / 172 grains
Dimensions 6.2 x 162 mm
Material Carbon/aluminum hybrid shaft, stainless steel ring, color code “blue”

Suitable with these limbs

90 lbs
120 lbs

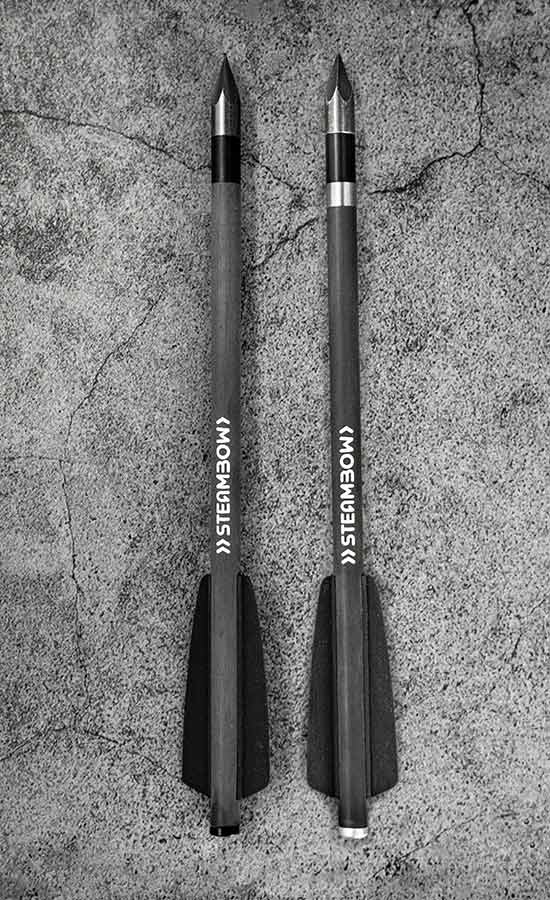

AR-Series - Carbon - Bodkin Arrows

The Bodkin Arrows with the black coding ring have a sharp point made of hardened tool steel and are heavier than our Target Arrows. The higher weight and hardened point give these arrows considerable penetrating ability. Even though they have no blades, these arrows cause considerably more serious wounds than Target Arrows. That and the ability of these arrows to penetrate targets particularly well makes them especially dangerous. This means that extreme care must be exercised when using bodkin arrows, and better target media are needed.Note that the sharp edges on these arrow points actually cut the target medium, and that Bodkin Arrows thus wear targets out significantly faster than our Target Arrows. Because of this, we do not recommend these arrows for regular practice.The somewhat higher weight means that these arrows cause less stress to the limbs. The color code is provided by a black anodized aluminum ring, and the arrow shaft is made of carbon.

AR-Series - Light Bodkin Arrows

The light Bodkin Arrows are ideal for 35 to 75 lb and have a carbon shaft, a glued hardened tool steel point, and a high quality polymer nock.

Shop Now

Technical Data

Weight 9.8 Grams / 151 grains
Dimensions 6.2 x 162 mm
Material Carbon, color code “black”

Suitable for these limbs

35 lbs
55 lbs
75 lbs

AR-Series - Heavy Bodkin Arrows

The heavy Bodkin Arrows (marked by an additional stainless-steel ring) are designed for our limbs with higher draw weights (90 to 120 lb). They have a high-quality aluminum nock and a hybrid carbon/aluminum shaft, meaning there is an aluminum core running inside the carbon shaft. This complex structure offers outstanding flight characteristics and makes the arrows extremely robust. At a weight of 228 grains, these arrows are considerably heavier than most pistol crossbow arrows and strike their target with high momentum. They can more easily penetrate hard target materials like metal sheeting or glass.

Shop Now

Technical Data

Weight 14.8 Grams / 228 grains
Dimensions 6.2 x 162 mm
Material Carbon/aluminium hybrid shaft, stainless steel ring, color code “black”

Suitable for these limbs

90 lbs
120 lbs
150 lbs
150 lbs (QD-ready)

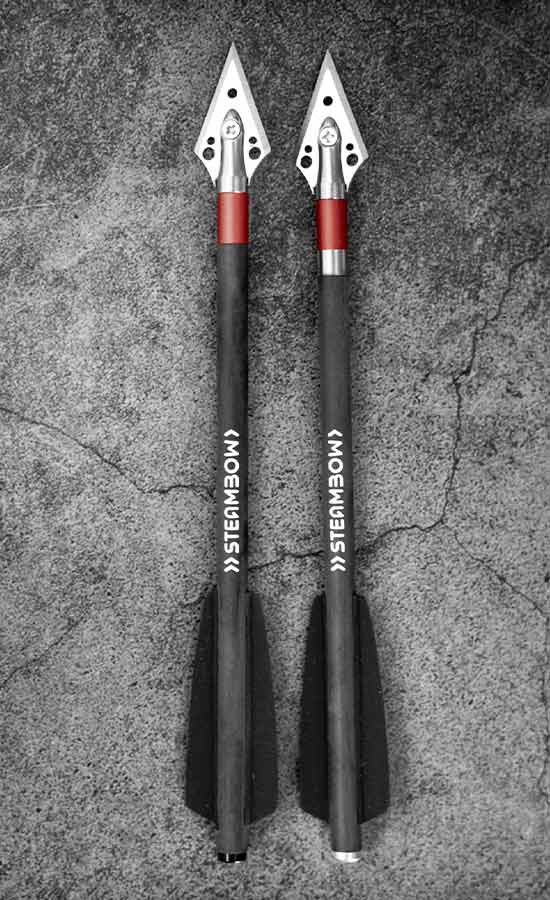

AR-Series - Carbon - Hunting Arrows

Our Hunting Arrows with razor-sharp blades turn the AR-6 Stinger II repeating crossbow into a very dangerous weapon. These arrows, fitted with broadhead points, cut with ease through leather, hide, and tissue and cause heavy bleeding. A single hit with such an arrow can easily cause mortal wounds, so extreme caution must be exercised when using them.We are particularly proud of the outstanding flight characteristics and precision of our Hunting Arrows. These arrows were developed especially for hunting and pest control. And they already have an impressive track record in North America, where crossbow hunting is very popular.

Note: Hunting Arrows are primarily a single-use product because they typically pass through the game animal and are destroyed or heavily damaged when they strike the ground or a tree. Because of this, these arrows are approved for higher draw weights relative to the arrow weight than other arrows.

Attention: Be sure to comply with the hunting laws in your country or state! Crossbow hunting is highly restricted in Europe!

AR-Series - Light Hunting Arrows

The light Hunting Arrows are ideal for 35 to 90 lb and have a carbon shaft, a CNC turned insert, a screwed stainless steel blade, and a high quality polymer nock. They have a flat trajectory and are especially ideal for pest control.

Shop Now

Technical Data

Weight 10.4 Grams / 161 grains
Dimensions 6.2 x 162 mm
Material Carbon, color code “red”

Suitable with these limbs

35 lbs
55 lbs
75 lbs
90 lbs

AR-Series - Heavy Hunting Arrows

The heavy Hunting Arrows (marked by an additional stainless steel ring) are designed for our limbs with higher draw weights (90 to 150 lb). They have a high-quality aluminum nock and a hybrid carbon/aluminum shaft, meaning there is an aluminum core running inside the carbon shaft. This complex structure offers outstanding flight characteristics and makes the arrows extremely robust. At a weight of 238 grains, these arrows are considerably heavier and strike their target with high momentum. This momentum combined with the extremely sharp blade makes these arrows very effective and suitable for hunting small to medium-sized game.

Shop Now

Technical Data

Weight 15.4 Grams / 238 grains
Dimensions 6.2 x 162 mm
Material Carbon/aluminum hybrid shaft, stainless steel ring, color code "red"

Suitable with these limbs

90 lbs
120 lbs
150 lbs
150 lbs (QD-ready)

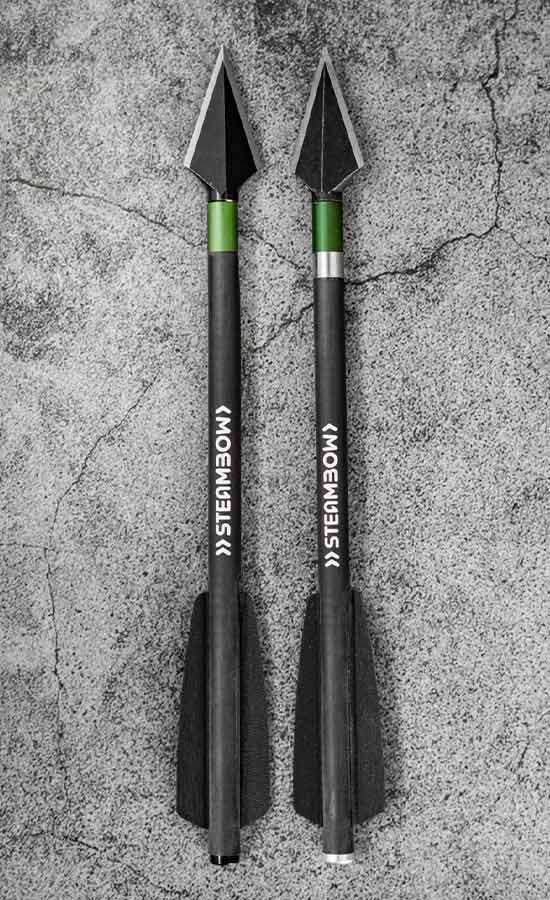

AR-Series - Carbon - Warbolts

Just like our Hunting Arrows, our Warbolts are fitted with a blade. But unlike our Hunting Arrows, these tips are based on historical arrow point designs. The designation “warbolt” comes from the fact that points of exactly this type were used in long-ago wars. They are considerably more robust than Hunting Arrows and offer much better penetration through hard materials (for example metal armor in a historical context) than the less robust Hunting Arrows thanks to the heavy forged and hardened point. This means that the arrows can be reused more times, and that they are not as susceptible to damage. At the same time, the cutting edges on these arrows are not nearly as sharp as on our Hunting Arrows and also cannot be sharpened to such a fine edge due to the blade geometry. If your primary concern is having robust arrows, then our Warbolts are your best choice.

Attention: These arrows, despite having cutting edges that are not as sharp, cut with ease through leather, hide, and tissue and cause heavy bleeding. A single hit with such an arrow can easily cause mortal wounds, so extreme caution must be exercised when using them.

Attention: Be sure to comply with the hunting laws in your country or state! Crossbow hunting is highly restricted in Europe!

AR-Series - Light Warbolts

The light Warbolts are ideal for 35 and 55 lb, but are also suitable for up to 90 lb thanks to their high weight. They have a carbon shaft, a hardened tool steel point glued into the shaft, and a high quality polymer nock.

Shop Now

Technical Data

Weight 11.3 Grams/174 Grains
Dimensions 6.2 x 162 mm
Material Carbon, color code "green"

Suitable with these limbs

35 lbs
55 lbs
75 lbs
90 lbs

AR-Series Heavy Warbolts

The heavy Warbolts (marked by an additional stainless steel ring) are designed for our limbs with higher draw weights (90 to 150 lb). They have a high-quality aluminum nock and a hybrid carbon/aluminum shaft, meaning there is an aluminum core running inside the carbon shaft. This complex structure offers outstanding flight characteristics and makes the arrows extremely robust. At a weight of 247 grains, these arrows are considerably heavier and strike their target with high momentum. This allows them to carry extreme momentum into the target and to transfer a high degree of energy from the limb. This momentum combined with the sharp blade makes these arrows very effective and extremely dangerous.

Shop Now

Technical Data

Weight 16 Grams/247 Grains
Dimensions 6.2 x 162 mm
Material Carbon/aluminum hybrid stock, stainless steel ring, "green" color code

Suitable with these limbs

90 lbs
120 lbs
150 lbs
150 lbs (QD-ready)

Aluminum Arrows

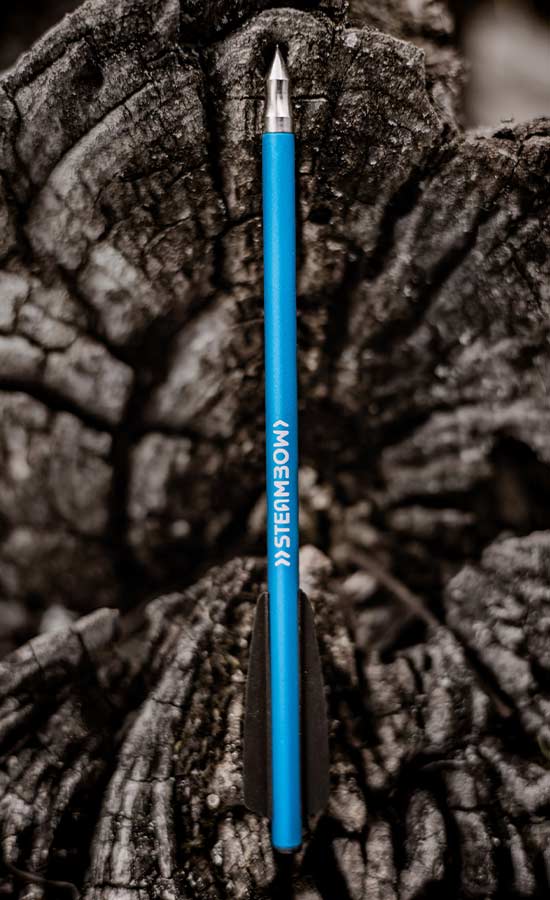

AR-Series – Target Arrows

Our practice arrows with blue anodized aluminum shafts are ideal for starting out with tactical crossbow shooting and are suited to low draw weights (our 35 lb and 55 lb limbs). Thanks to their somewhat lower weight, these arrows have a comparatively flat trajectory and lower penetration, which is ideal for recreational shooting and shorter distances.When they were introduced together with the AR-6 Stinger II in 2019, these arrows were a quantum leap in pistol crossbow arrows and set an entirely new quality benchmark. Since then, we have added higher draw weights to the family, and these arrows are too light for these bows. But they are very good for somewhat weaker pistol crossbows up to an 80 lb draw weight.

Note: It is easy to bend these bolts when pulling them out of the target. Shots at very short distances or into targets that are too hard can also deform the shafts. Bent shafts cause poor accuracy, and can cause malfunctions and dry fires. Bent arrows must be straightened or discarded in any case.

Buy now

Technical data

Weight 9.2 Gramm / 142 grains
Dimensions 6.2 x 162 mm
Material Anodized aluminum, color code “blue”

Suitable with these limbs

35 lbs
55 lbs
75 lbs

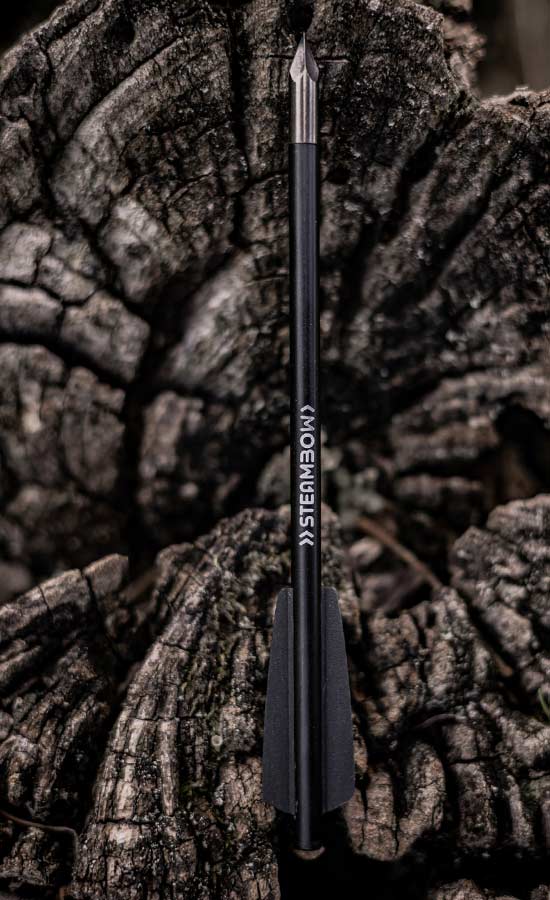

AR-Series - Bodkin Arrows

The black anodized bodkin arrows have a sharp-edged tip made of hardened tool steel and are significantly heavier than the aluminum practice arrows. Due to their higher weight and hard tip, these arrows have enormous penetrating power. Even though they don't have a blade, they cause significantly more damage than the practice arrows. This combined with their ability to penetrate targets particularly well makes these arrows extremely dangerous. Therefore, increased caution is required when handling bodkin arrows and better aiming media are required. We strongly advise against using your own designs as targets. Due to their higher weight, these arrows are gentler on the limbs and limb end caps and are highly recommended from 75 lbs. At the latest, the 90 lbs throwing arm may only be used with these or heavier arrows. With a hard target or at shorter distances, the arrow shaft can bend easily. Therefore, you need to pay close attention to straightness with repeated use and straighten the arrows if necessary. Bent arrows massively worsen the hit result and can lead to malfunctions and dry shots.

Shop Now

Technical Data

Weight 10.5 Grams / 162 grains
Dimensions 6.2 x 162 mm
Material Anodized aluminum, color code "black"

Suitable for these limbs

35 lbs
55 lbs
75 lbs
90 lbs

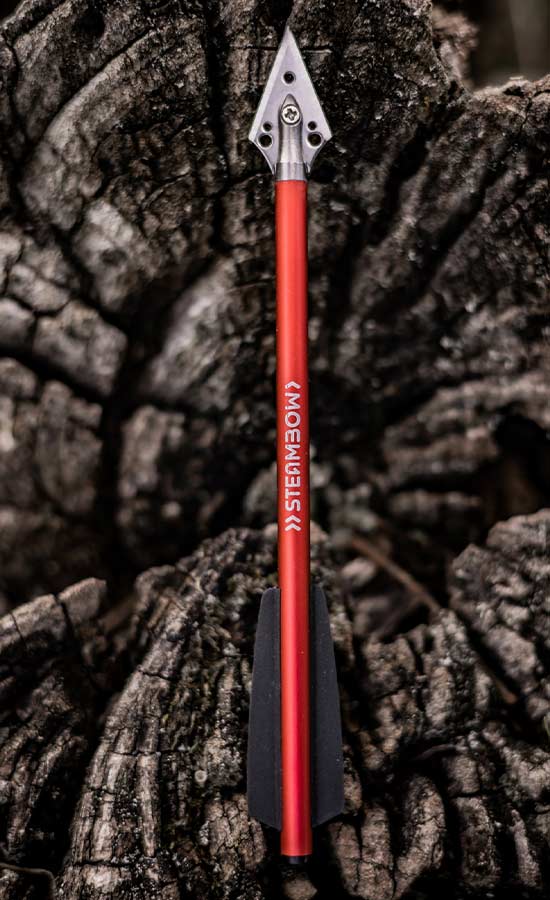

AR-Series - Hunting Arrows

Our aluminum hunting arrows transform the AR-6 Stinger II repeating crossbow into a very dangerous instrument. Equipped with razor-sharp blades, these arrows cut through fur, skin and tissue with ease, causing profusely bleeding wounds. A single hit with such an arrow can easily cause life-threatening injuries. Therefore, special care must be taken when handling these arrows. We are particularly proud of the excellent flight characteristics and precision of our hunting arrows - a unique selling point that the numerous clones from China can only dream of. These arrows have been developed particularly for hunting applications and pest control. They already have an impressive track record in North America, where hunting with crossbows is very popular.

Note: Hunting arrows are primarily seen as “disposable arrows”. If you miss, the arrow either lands on a stone or tree and is destroyed, or it disappears completely into the undergrowth. Even with a good effective hit, an arrow like this is often lost. Therefore, these arrows are also approved for higher draw weights, but not for repeated use. When struck, the aluminum arrow shaft bends slightly.

Shop Now

Technical Data

Weight 10.0 Grams / 154 grains
Dimensions 6.2 x 162 mm
Material Anodized aluminum, color code "red"

Suitable for these limbs

35 lbs
55 lbs
75 lbs
90 lbs
