Steambow Inc.

AR-Series Limbs

AR-Series Limbs

$39.99
$39.99
Sale Sold out
Draw Weight (lbs)

Low stock

Important: Using arrows lighter than 178 grains with the 120 and 150 lbs limb can lead to damages to the limb tips, limb or the crossbow itself. The 90 lbs limb should only be used with arrows weighing 155 grains or more. THERE IS NO ARROW WEIGHT REQUIREMENT WITH THE M10 TACTICAL AND OTHER STRING-DAMPENER EQUIPPED CROSSBOWS.
View full details

The limbs for our AR-6 Stinger II

Our limbs for the AR-6 Stinger II are offered in a wide range to allow every Stinger II user to have the right draw weight for the intended purpose. These limbs are made of a combination of fiberglass and carbon and thus offer increased performance in comparison to regular pistol crossbow limbs.

  • * Minimum FPS rating: This arrow speed is guaranteed as the minimum performance of the limb. Measured with the following reference arrows: Steambow 6.2 x 162 mm aluminum practice arrows with 9.2 g / 142 grains total weight (item number: 0000215). The prerequisite for achieving this performance is an original string in good condition with a brace height of 65mm and a power stroke of at least 150mm (AR-Series Stinger 2 main body).

    ** The nominal draw weight (given in lbs) is used to estimate how difficult it is to draw the bow. This value is purely indicative and may vary slightly due to the manufacturing process. Very good bows require slightly less effort to achieve the required minimum performance.

    *** Kinetic energy: The nominal kinetic energy is a guideline to better assess the danger potential of the crossbow. To achieve maximum energy, the heaviest possible arrows are required, especially at higher draw weights. Please note that the specific danger potential also depends significantly on the arrowhead used. Hunting arrows are always considered potentially lethal, regardless of the muzzle energy.

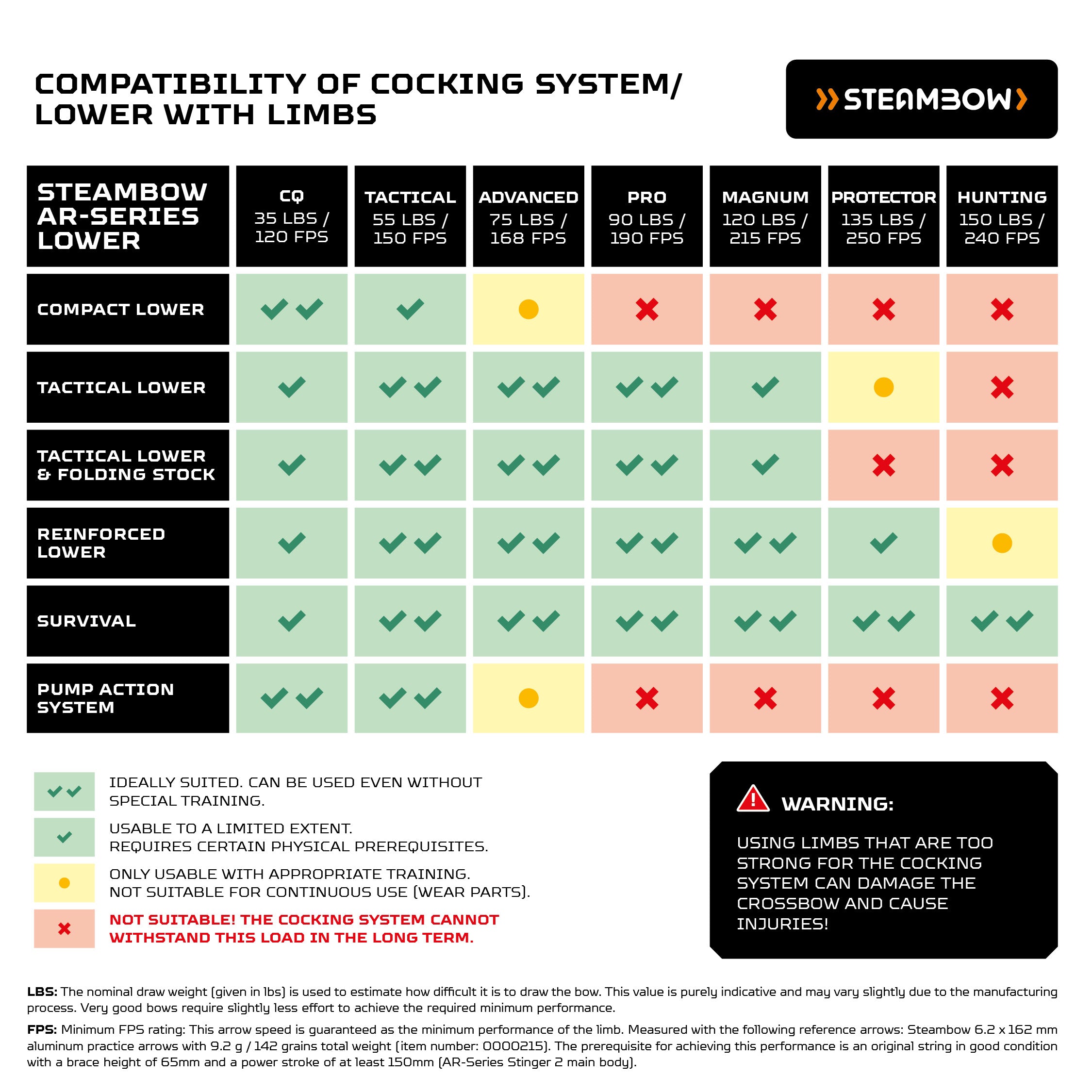

The AR-6 Stinger II Compact is designed for fast and dynamic shooting frequencies and therefore only works really well with lower draw weights. For this reason, we recommend the CQ (35 lbs) or standard (55 lbs) limb for optimal use.

The AR-Series M10 Tactical or AR-6 Stinger II Tactical shines with its versatility of use. It is good to use with limbs ranging from 35 to 120 lbs.

Attention: Not every combination of limb, stinger model and arrows is reasonable! 120 and 150 lbs limbs require the use of the heavy variants of our carbon arrows. The 90 lbs limb can be used with the aluminum Bodkin and Broadhead arrows as well as the heavy variants of our carbon arrows. THERE IS NO ARROW WEIGHT REQUIREMENT WITH THE M10 TACTICAL AND OTHER STRING-DAMPENER EQUIPPED CROSSBOWS.


Please note that a limb ≥ 90 lbs will result in higher wear on the string and end caps even when used as intended.



In addition, a limb ≥ 90 lbs is unsuitable for the AR-6 Stinger II Compact, as the necessary force for cocking must be applied directly and this limb is therefore generally too strong.

Damage caused by dry fire, arrows that are too light or due to lack of maintenance are not covered by our warranty.

The AR-Series limbs do not fit the previous versions of the AR-6 Stinger I.


Note:
The draw weight is not a sufficient indicator of the performance of the bow of a crossbow!

Contents

  • 1 limb
  • 1 black/orange string (grey heavy-duty string for 120 and 150 lbs)
  • 1 QD Limb block
  • 2 polymer limb tips (aluminum for 120 and 150 lbs)
  • 1 stringing aid
About our Limbs
